03:27 PM lcnc-relay: <redboro_@> Anyone running 7i96s + 7i85s willing to answer a couple of questions?
03:34 PM Tom_L: ask
03:42 PM lcnc-relay: <xxcoder@> redboro_@: yeah its always better to ask question than ask to ask a question 🙂
03:57 PM JT-Shop: sounds like some double talk there
04:09 PM pcw: so I can't ask to ask to ask a question?
04:10 PM roycroft: yes, you can, but you can't ask to ask to ask to ask a question
04:10 PM roycroft: you must make an odd number of asks, not an even one
04:17 PM lcnc-relay: <finboyslick@> See, this is why I missed you guys.
04:17 PM xxcoder: lol
04:25 PM rdtsc-w is now known as rdtsc-odd
04:27 PM rdtsc-odd is now known as rdtsc-w
04:29 PM lcnc-relay: <lesliet@> roycroft: I mean, they can... it's their askstorisk.
05:16 PM lcnc-relay: <redboro_@> xxcoder@: Point taken!
05:16 PM lcnc-relay: <redboro_@> Will 7i85s show up on readhmid?
05:18 PM lcnc-relay: <redboro_@> Can I use the encoder channels on 7i85s for linear encoders to track position of steppers driven off 7i96s or would I need to wire the steppers to 7i85s instead?
05:18 PM JT-Shop: with everything connected and powered up you can get a list of all the hal pins
05:19 PM JT-Shop: steppers with encoders is very challenging but a few have done that
05:19 PM lcnc-relay: <redboro_@> What’s strange is I’m only getting encoder channels 0-3 instead of 0-4, I’m not sure if it’s enc 3 on 7i85s that’s dropping off or the sole enc on 7i96s
05:19 PM JT-Shop: the issue is you can't tell a stepper to apply more power to catch up
05:20 PM lcnc-relay: <redboro_@> Oh so you’ll just eventually get a following error instead of rectifying mismatch?
05:20 PM JT-Shop: yup
05:20 PM lcnc-relay: <redboro_@> Well shit
05:20 PM JT-Shop: sorry but that's how steppers work
05:21 PM * JT-Shop wonders if pcw is around
05:21 PM lcnc-relay: <redboro_@> I have linear encoders on my lathe from the DRO, was hoping to use those to keep everything tight but it sounds like I should just use the built in encoders on the stepper to track lost steps instead?
05:22 PM lcnc-relay: <redboro_@> Forgive me, I’m uninitiated, PCW?
05:22 PM JT-Shop: for steppers it's best to not drive them hard enough to loose steps
05:22 PM JT-Shop: he is the chief bottle washer at Mesa
05:23 PM lcnc-relay: <redboro_@> It’s honest work
05:23 PM JT-Shop: and he's the chief sheep tender I 'think'
05:24 PM lcnc-relay: <redboro_@> Alright, so closed loop feedback basically pointless, even if only using the built in encoders of the stepper?

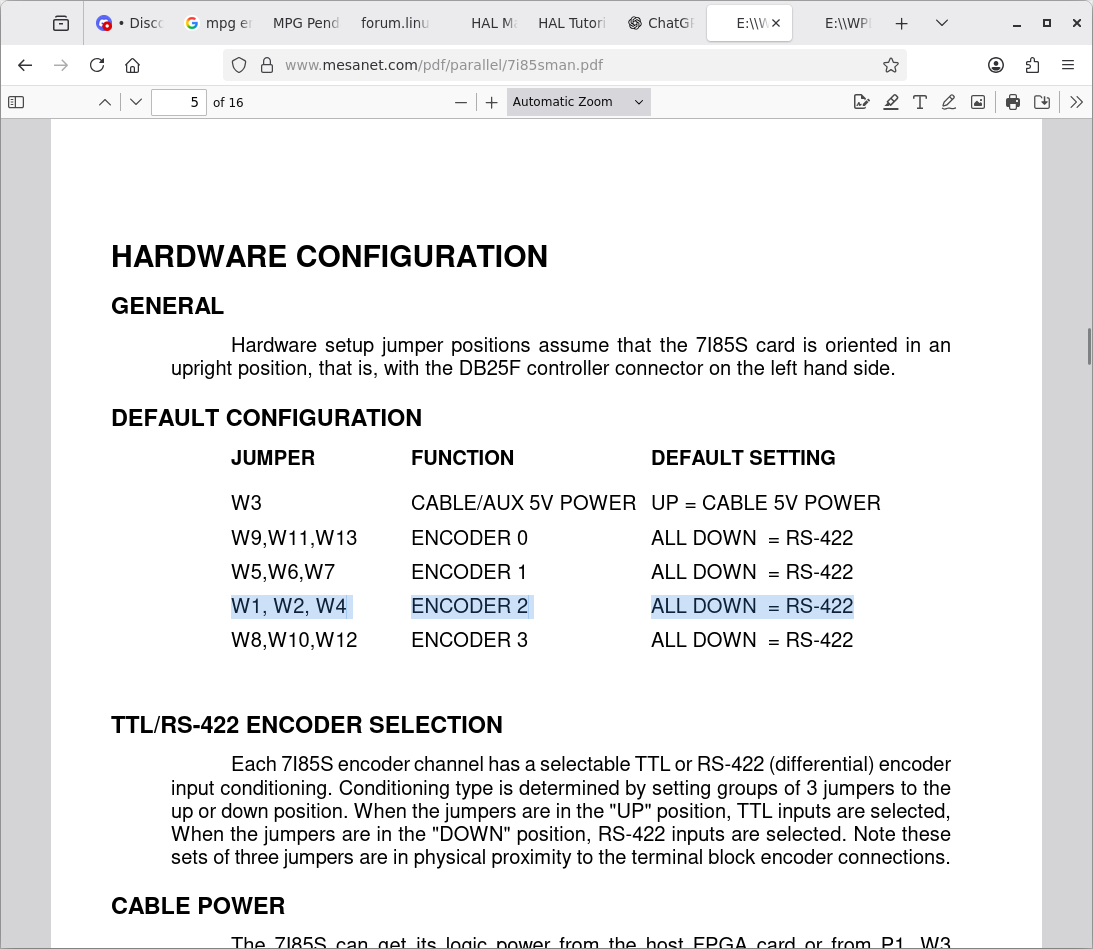

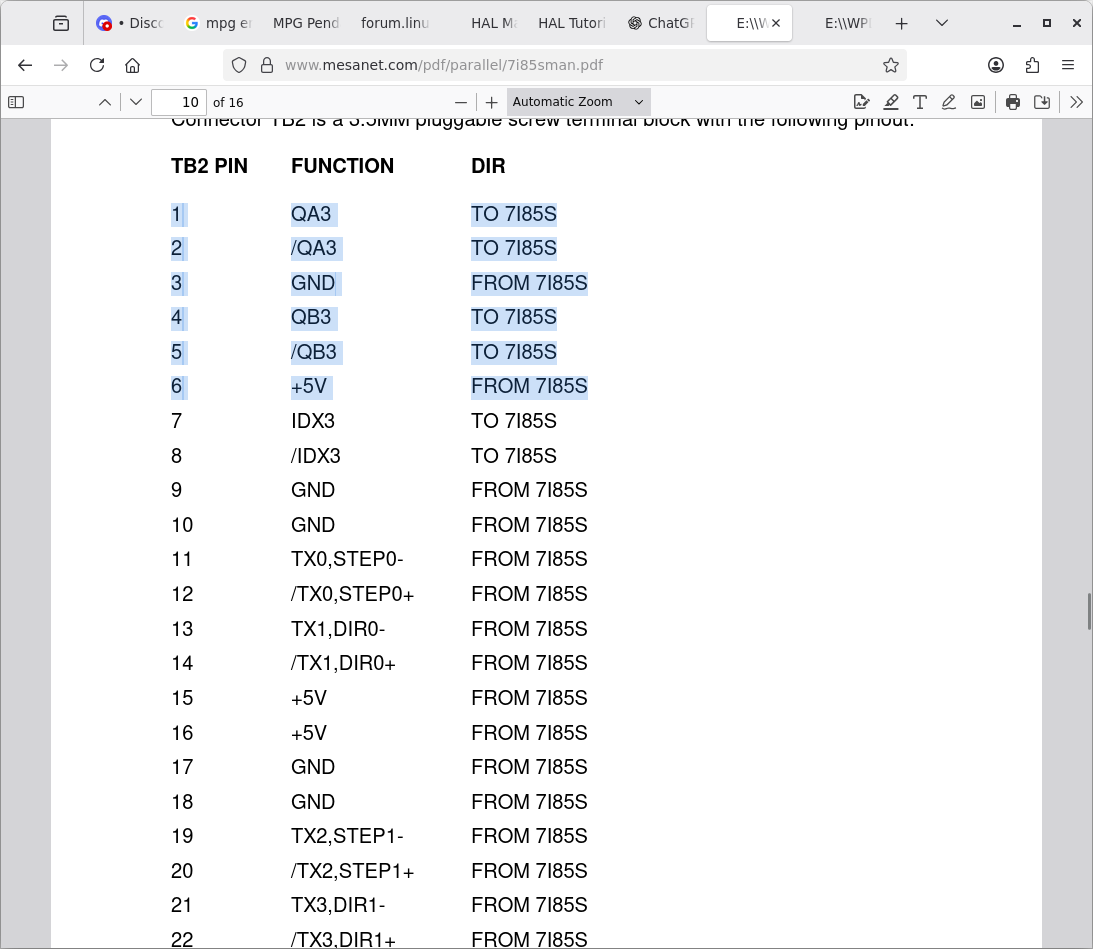

05:24 PM pcw: I think a 7I96S/7I85 maps the encoders: 7I85 0..3 7I96S 4
05:24 PM JT-Shop: Hi Peter
05:25 PM pcw: Close loop win linear encoders can improve accuracy even with step/dir drives
05:25 PM lcnc-relay: <redboro_@> I’m not in front of my build right now, but assuming I can just change encoders = 4 to 5 and enc 4 (7i96s) will populate?
05:25 PM pcw: but it's best to get open loop working well first

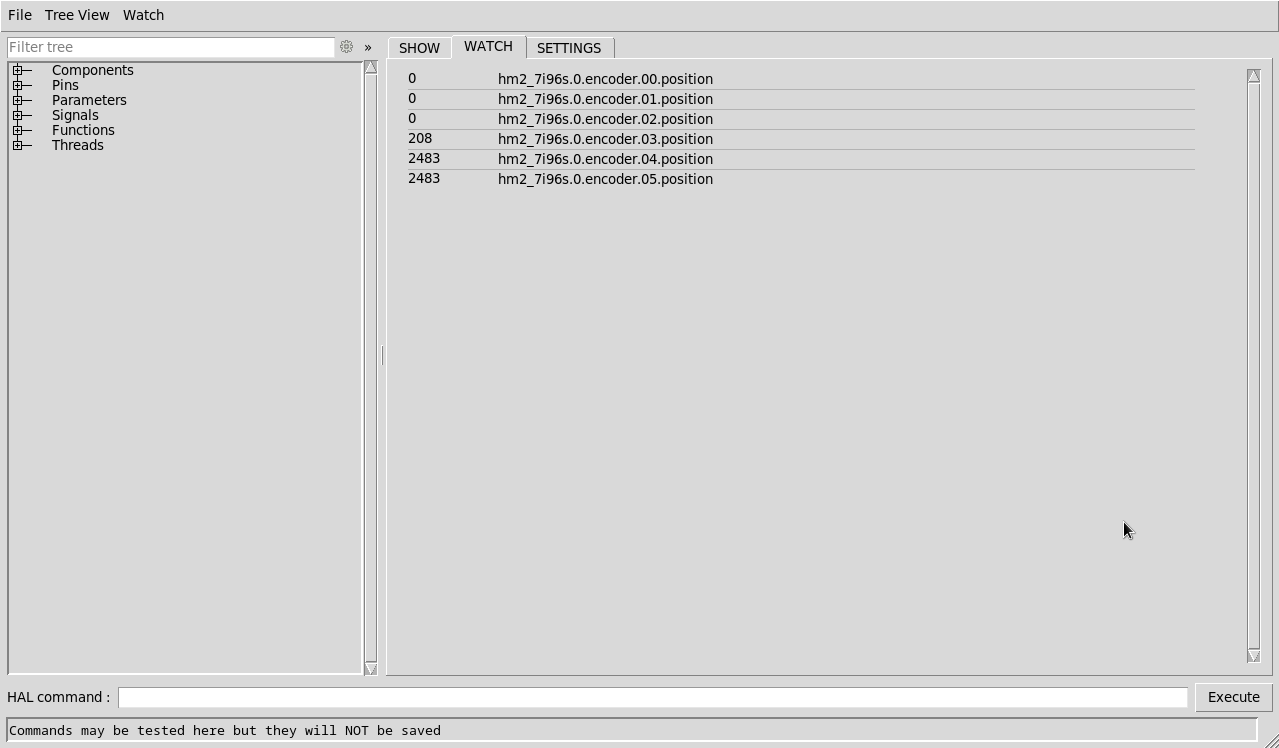

05:26 PM pcw: Yes, set num_encoders to 5
05:26 PM lcnc-relay: <redboro_@> Good to know, and is there issue with driving steppers from TBx on 7i96s but bringing encoders from say enc0 & enc1 from 7i95s?
05:27 PM lcnc-relay: <redboro_@> * 7i85s
05:27 PM pcw: no
05:27 PM lcnc-relay: <redboro_@> 😮💨
05:28 PM lcnc-relay: <redboro_@> Great, that will keep me busy for awhile, but while I’ve got y’all here…any issue using enc2 & enc 3 from 7i85s to drive jogging with MPG wheels? Can I jog simultaneously?
05:31 PM Tom_L: different axis i assume
05:31 PM Tom_L: if the mpg is tied to the axis i would think so
05:34 PM JT-Shop: you can do that in HAL
05:34 PM Tom_L: i chose to use an axis switch and one MPG
05:36 PM Tom_L: axis.x.jog-enable, axis.x.jog-counts, axis.x.jog-scale
05:36 PM Tom_L: are the basic signals
05:36 PM JT-Shop: that's what I do I have two selector switches one for increment and one for axis
05:36 PM Tom_L: same
05:37 PM Tom_L: i think andy has 2 MPG on his lathe but not sure how he's wired them
05:37 PM Tom_L: i can see that more for a lathe

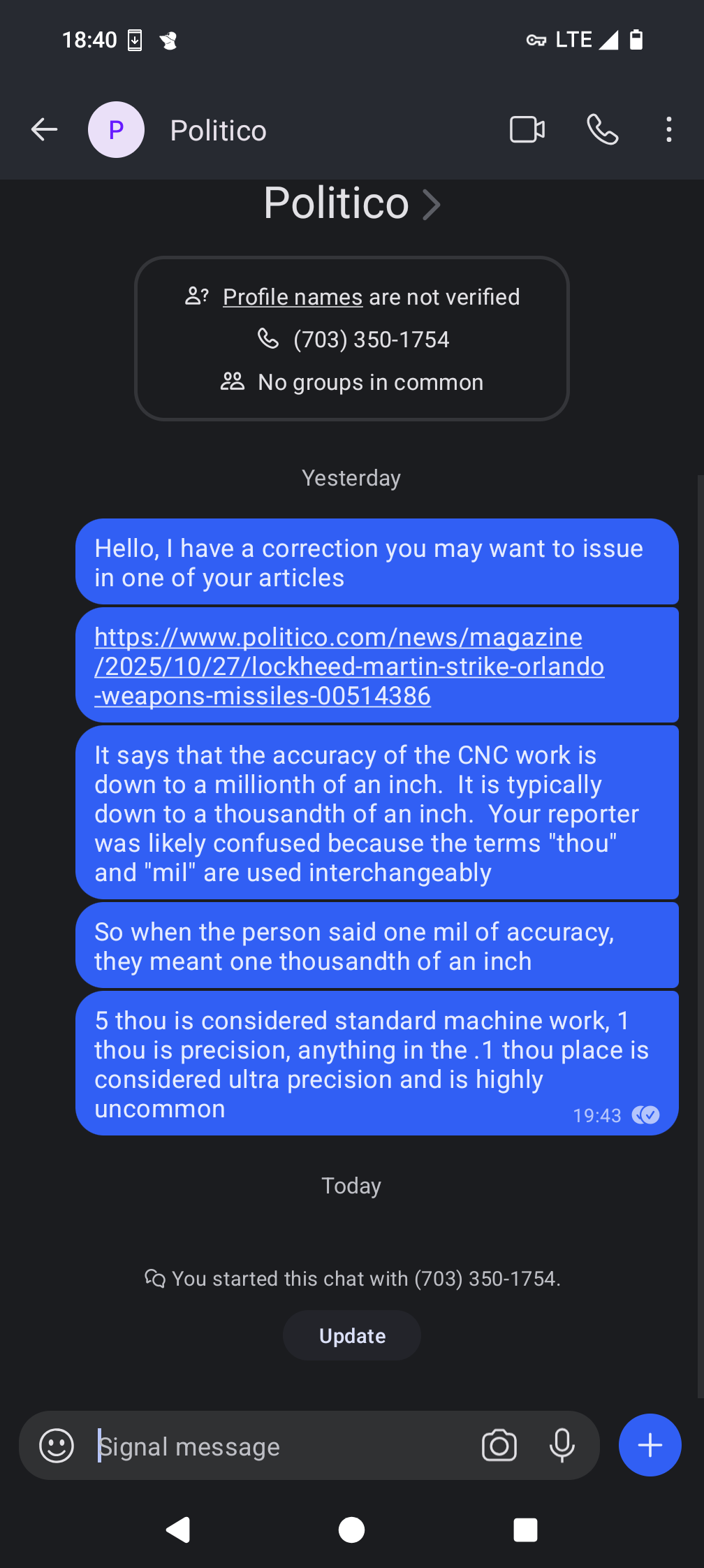

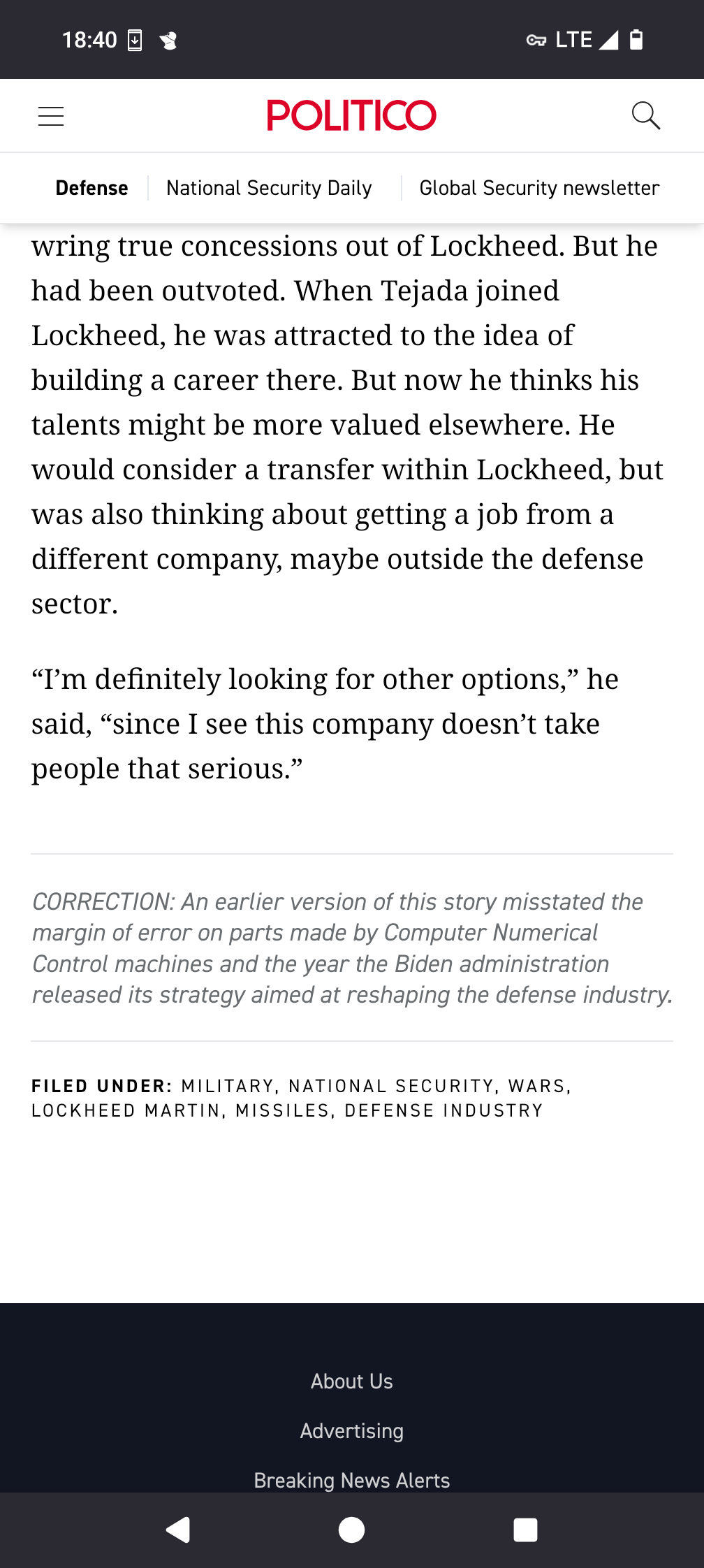

05:46 PM lcnc-relay: <fluffyalpaca@> I submitted a correction to politico and they actually fixed the article
05:46 PM lcnc-relay: <fluffyalpaca@> https://jauriarts.org/_heisenbridge/media/jauriarts.org/jsINmMDfklDDwlmiBTpatVSK/LGwitFtail8/Screenshot_20251030-184016.png
05:46 PM lcnc-relay: <fluffyalpaca@> https://jauriarts.org/_heisenbridge/media/jauriarts.org/MyORaTJfWSszdFfdNiJqiNRq/18ib6cOuWok/Screenshot_20251030-184040.png
05:47 PM lcnc-relay: <redboro_@> If I had my druthers, I’ll have push buttons to drive each axis +&- continuously (like the keyboard arrow keys) and MPG hand wheels jogging at set increments. I’d like to avoid an axis selector switch for ergonomics, going for a user experience similar to Prototrak manual operation

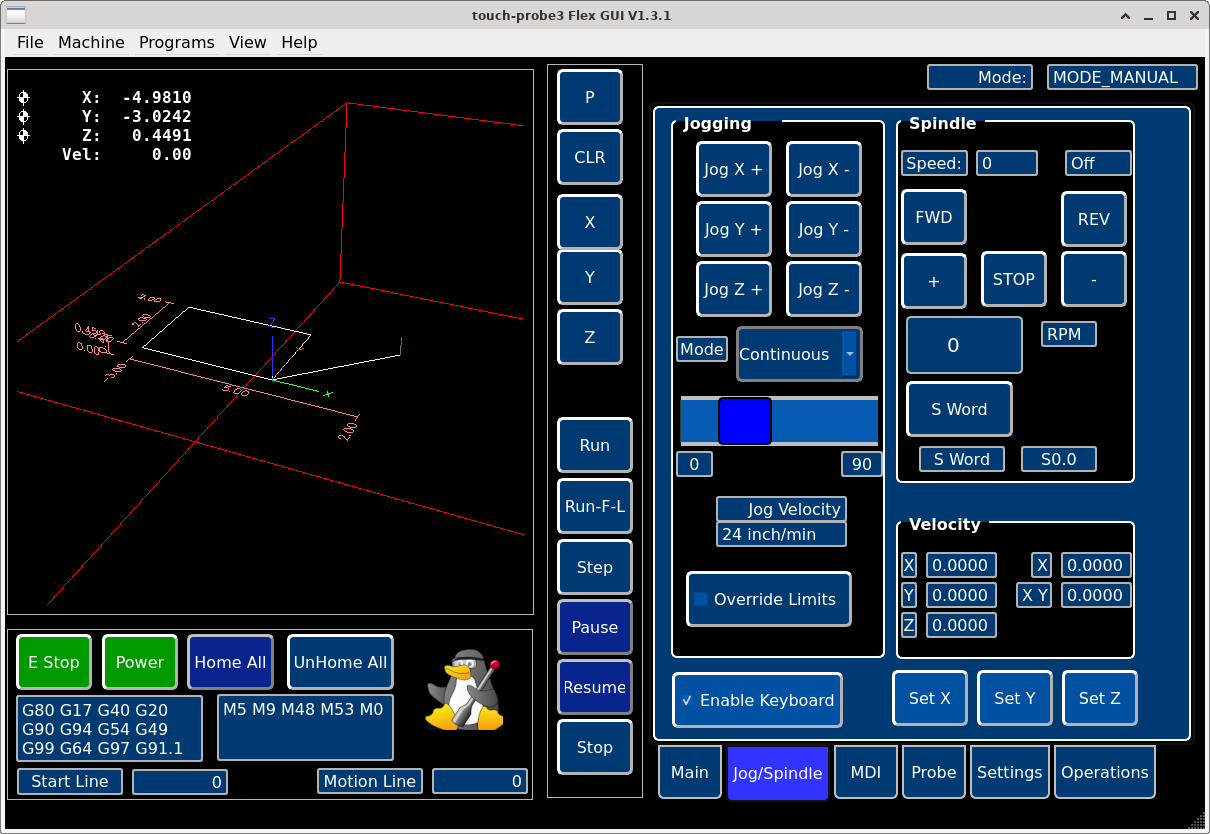

05:48 PM JT-Shop: you can do that easy with Flex GUI
